SWIR

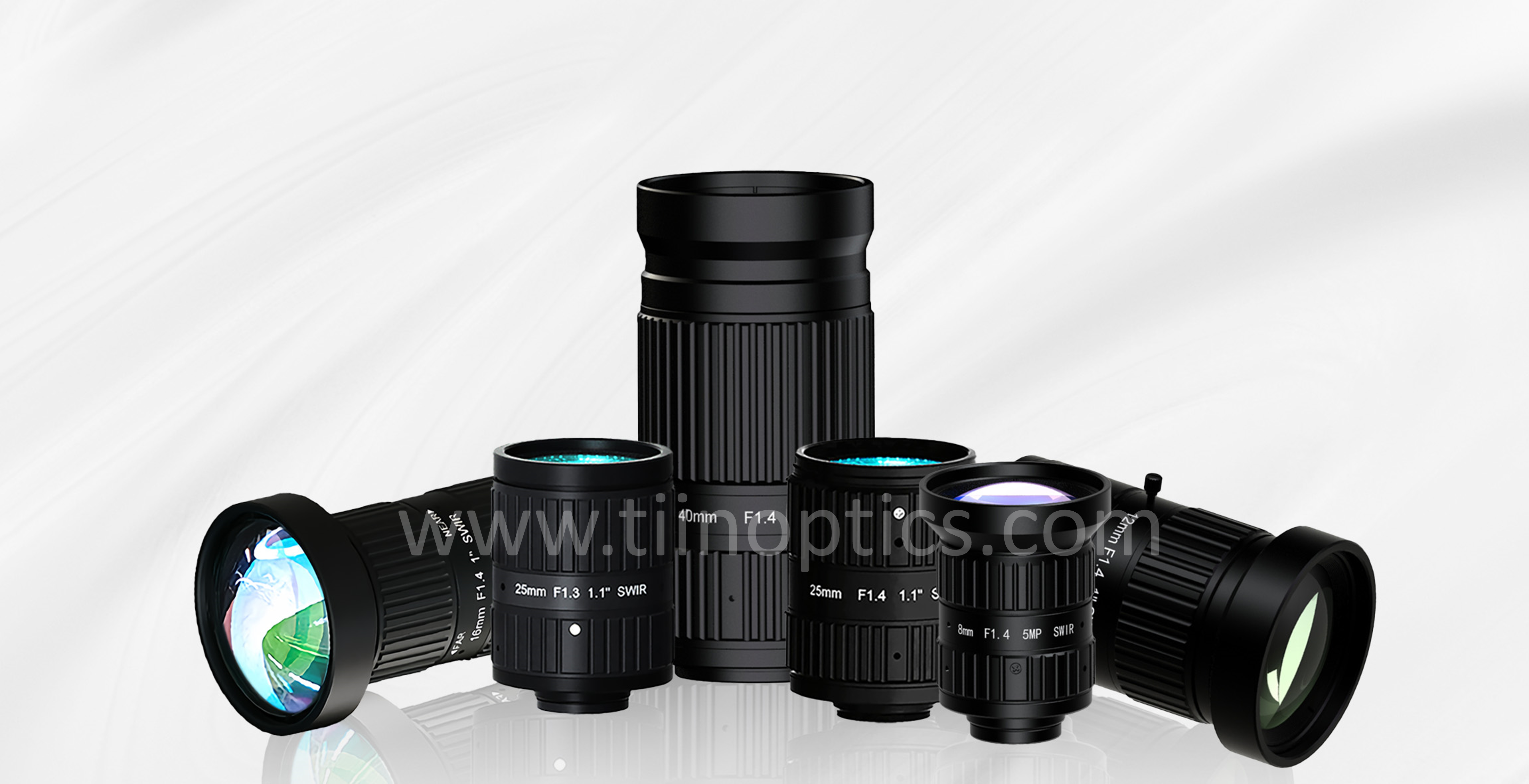

Short-wave infrared lens (SWIR)
- Working wavelength 800-1700nm (0.8-1.7μm)
- Support InGaAs detector
Item | Focal | Format | Aperture | Resolution | Iris | M.O.D. | TV Distortion | Mount |
SW2513 | 25mm | 1.1" | F1.3 | 5MP | Manual | 0.1m | 0.50% | C |
SW1408 | 8mm | 1/1.2" | F1.4 | 5MP | Manual | 0.1m | 0.90% | C |
SW4014 | 40mm | φ28 | F1.4 | 4k7μ | Manual | 0.1m | 0.08% | M42 |
SW1412 | 12mm | 1" | F1.4 | 5MP | Fixed | 0.1m | 0.60% | C |
SW1135 | 35mm | 1.1" | F1.4 | 5MP | Manual | 0.1m | 0.10% | C |
SW1614 | 16mm | 1" | F1.4 | 5MP | Fixed | 0.15m | 0.19% | C |
Item | Focal | Format | Aperture | FOV | M.O.D. | Outer diameter | Outer length | Mount |
SW34200 | 200mm | φ12.4mm | F3.0 | 3.5° | 10m | φ89mm | 163mm | C |
SW20360 | 360mm | φ20.5mm | F2.6 | 3.39° | 3.5m | φ130mm | 380mm | E |
